Vacuum Hose Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Pinch open the clamp using pliers and disconnect the vacuum hose.

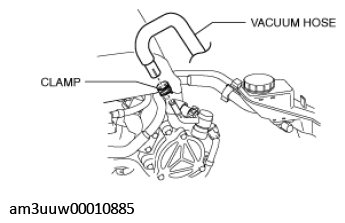

Fig 1: Vacuum Hose And Clamp
Courtesy of MAZDA MOTORS CORP.
Detach the vacuum hose from the clip.

Fig 2: Vacuum Hose And Clip
Courtesy of MAZDA MOTORS CORP.
Pinch open the clamp using pliers and disconnect the vacuum hose.

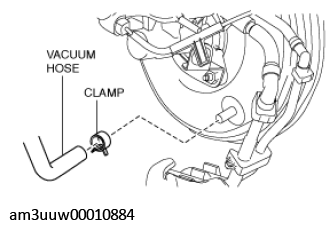

Fig 3: Clamp And Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Remove the vacuum hose.
Install in the reverse order of removal.
