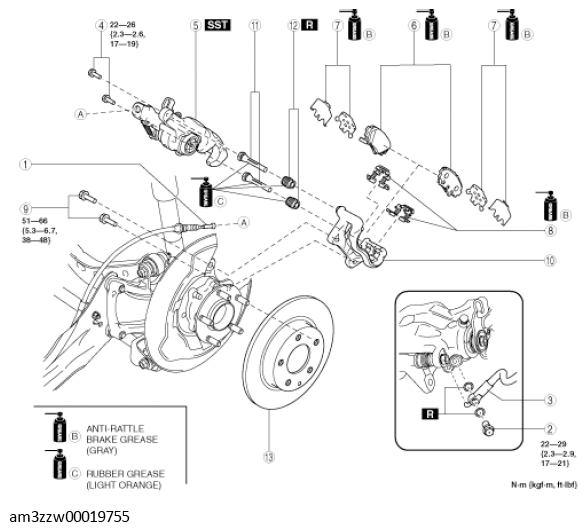

Fig 1: Exploded View Of Rear Brake (Disc) With Torque Specification - World Manufacturer Identification "JM1"
COMPONENT DESCRIPTION
| 1 | Rear parking brake cable (See Rear parking brake cable installation note .) |
| 2 | Bolt |
| 3 | Brake hose |
| 4 | Bolt |
| 5 | Caliper (See Caliper installation note .) |
| 6 | Disc pad |
| 7 | Shim |
| 8 | Guide plate |
| 9 | Bolt |
| 10 | Mounting support |
| 11 | Slide pin |
| 12 | Dust boot |
| 13 | Disc plate |
