With Electric Parking Brake: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When in maintenance mode, the clearance between the disc pad and the disc plate expands.
When the maintenance mode is completed, perform the electric parking brake automatic adjustment.
With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

Switch to the maintenance mode. (See MAINTENANCE MODE .)
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Disconnect the electric parking brake motor gear unit connector.

Fig 1: Disconnecting Electric Parking Brake Motor Gear Unit Connector
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.
End the maintenance mode. (See MAINTENANCE MODE .)
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

After installation, pump the brake pedal a few times and inspect the following:

The disc pad projection is securely installed to the piston groove
Brake drag

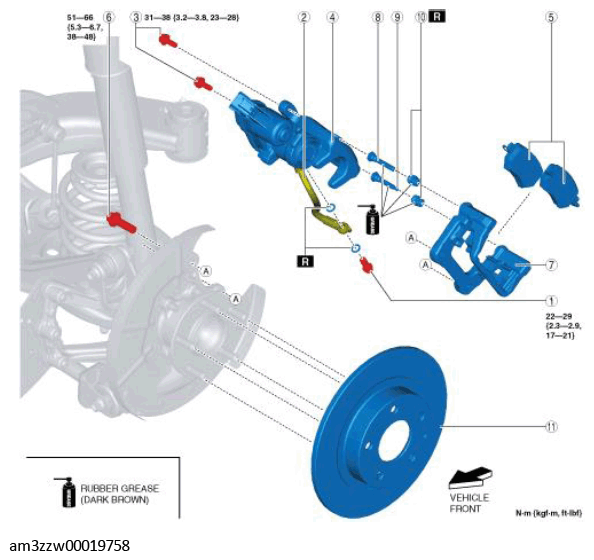

Fig 2: Exploded View Of Brake Caliper Assembly

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Brake hose
3	Bolt
4	Caliper (See Caliper installation note .)
5	Disc pad component
6	Bolt
7	Mounting support
8	Slide pin
9	Slide pin (with bushing)
10	Dust boot
11	Disc plate
