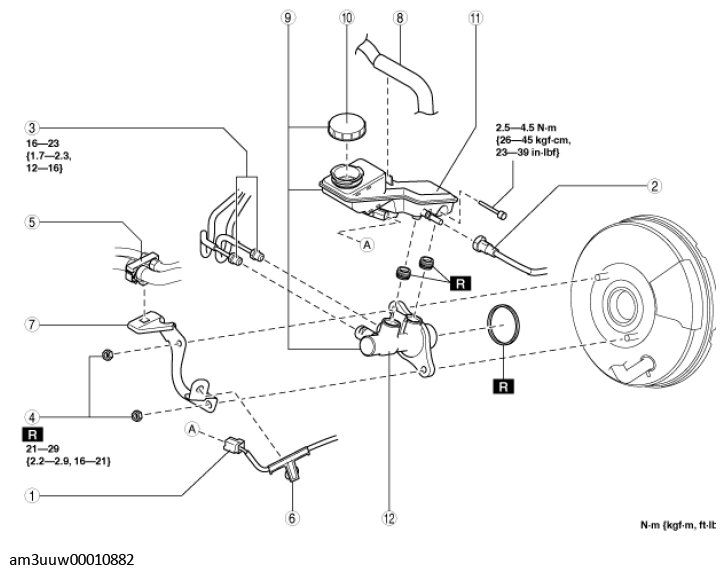

Fig 1: Exploded View Of Master Cylinder With Torque Specification - World Manufacturer Identification "JM1"
COMPONENT DESCRIPTION
| 1 | Brake fluid level sensor connector |
| 2 | Clutch reserve hose (MTX) (See Clutch Reserve Hose Removal Note (MTX) .) (See Clutch Reserve Hose Installation Note (MTX) .) |
| 3 | Brake pipe |
| 4 | Nut |
| 5 | Hose holder |
| 6 | Wiring harness |
| 7 | Bracket |
| 8 | Vacuum hose |
| 9 | Master cylinder |
| 10 | Cap |
| 11 | Brake fluid reserve tank |
| 12 | Cylinder component |
