Without Electric Parking Brake: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, pump the brake pedal a few times and inspect the following:
- The disc pad projection is securely installed to the piston groove
- Parking brake lever stroke
- Brake drag

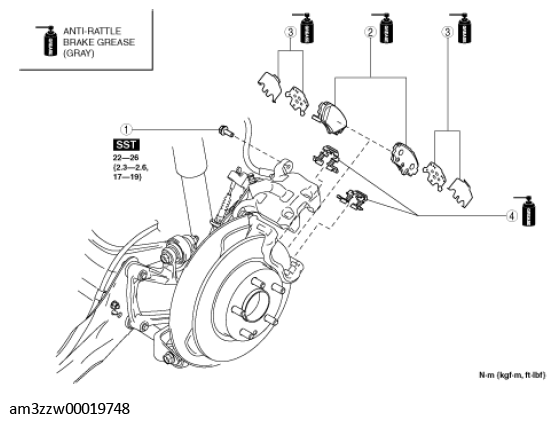

World manufacturer identification "JM1"
COMPONENT DESCRIPTION1 Caliper installation bolt
(See Caliper installation bolt removal note .)

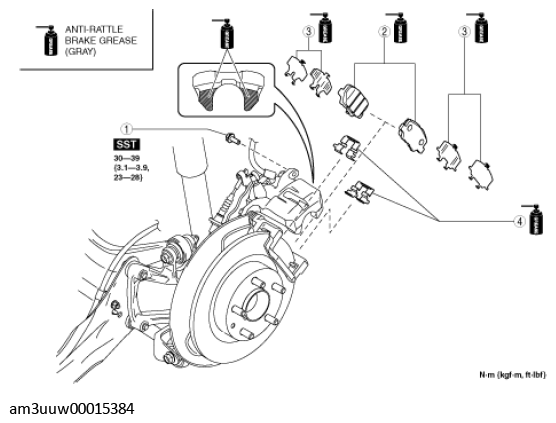

(See Caliper installation bolt installation note .)2 Disc pad 3 Shim 4 Guide plate World manufacturer identification "3MZ"
COMPONENT DESCRIPTION1 Caliper installation bolt
(See Caliper installation bolt removal note .)
(See Caliper installation bolt installation note .)2 Disc pad 3 Shim 4 Guide plate
