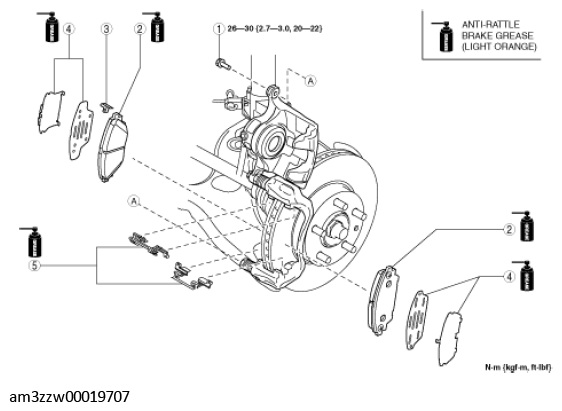

COMPONENT DESCRIPTION
| 1 | Caliper installation bolt (See Caliper installation Bolt Removal Note .) (See Disc Pad, Caliper installation Bolt Installation Note .) |
| 2 | Disc pad (See Disc Pad, Caliper installation Bolt Installation Note .) |
| 3 | Wear indicator |
| 4 | Shim |
| 5 | Guide plate (See Guide Plate Installation Note .) |
