Without Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

World manufacturer identification "JM1"

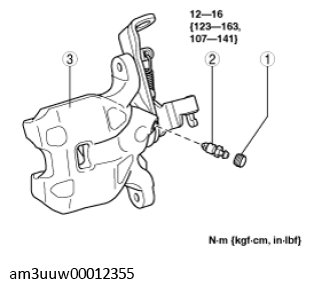

Fig 1: Disassembling/Assembling Rear Caliper With Torque Specification (Without Electric Parking Brake) - World Manufacturer Identification "JM1"

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Caliper

World manufacturer identification "3MZ"

Fig 2: Disassembling Rear Caliper With Torque Specification (With Electric Parking Brake) - World Manufacturer Identification "3MZ"

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Caliper

Assemble in the reverse order of removal.
