With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

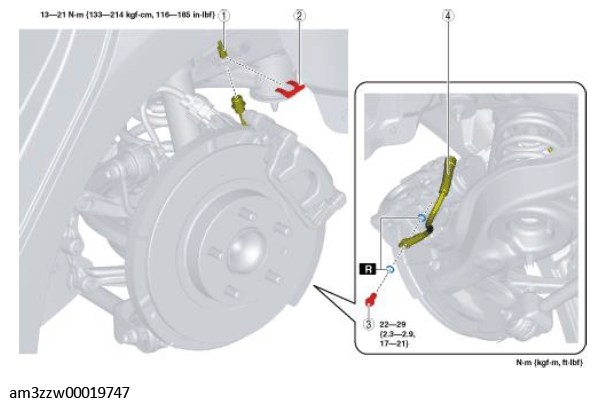

Fig 1: Exploded View Of Brake Hose (Rear) With Torque Specification - With Electric Parking Brake

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake pipe
2	Clip
3	Bolt
4	Brake hose
