Transaxle mounting bolt removal note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Remove the MTX carefully, holding it steady. If the MTX falls it could be damaged or cause injury.

Adjust the SST and lean the engine toward the MTX.

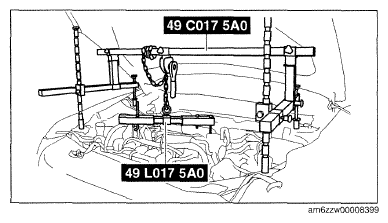

Fig 1: Installing SST (49 L017 5A0) To SST (49 C017 5A0)
Courtesy of MAZDA MOTORS CORP.
Support the MTX on a jack.

Fig 2: Supporting MTX On Jack
Courtesy of MAZDA MOTORS CORP.
Remove the transaxle mounting bolts (lower side).

Fig 3: Locating Transaxle Mounting Bolts (Lower Side)
Courtesy of MAZDA MOTORS CORP.
Remove the MTX.
