Back-Up Light Switch Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

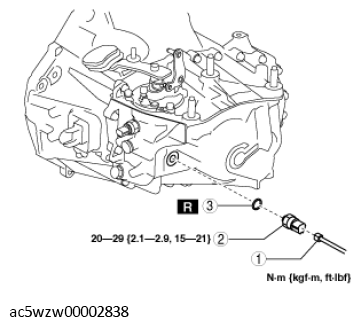

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Back-up light switch connector |
| 2 | Back-up light switch |
| 3 | Gasket |
