Vanity Mirror Illumination Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION .)
Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

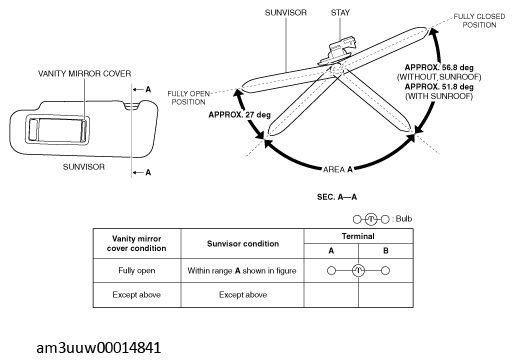

Fig 1: Vanity Mirror Illumination Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Checking Continuity Between Vanity Mirror Illumination Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the vanity mirror illumination bulb or the sunvisor. (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See SUNVISOR REMOVAL/INSTALLATION .)
