Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Insert the remover tool into the service hole at the position shown in the figure.

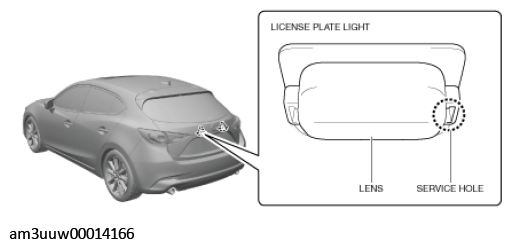

Fig 1: Locating License Plate Light Remover Tool
Courtesy of MAZDA MOTORS CORP.
Widen the lens in the direction of arrow (1) using the remover tool and pull it in the direction of arrow (2) to detach the license plate light tab from the lens.

Fig 2: Widening License Plate Light Lens
Courtesy of MAZDA MOTORS CORP.
Remove the lens.

Fig 3: Removing License Plate Light Lens
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).
Remove the license plate light bulb.
Install in the reverse order of removal.
