Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the service hole cover.

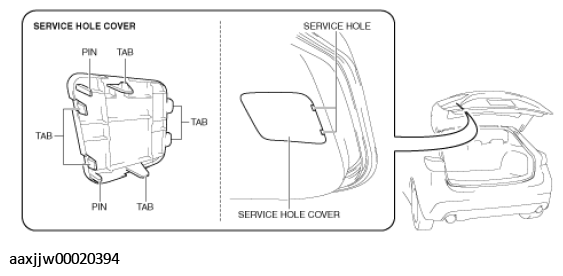

Fig 1: Locating Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

Fig 2: Disconnecting Service Hole Cover Connector
Courtesy of MAZDA MOTORS CORP.
Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).
Remove the back-up light bulb.

Fig 3: Removing Back-Up Light Bulb From Socket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
