Connector Disconnect Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).

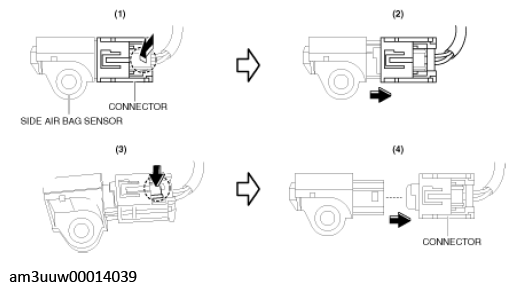

    Fig 1: Disconnecting Connector From Side Air Bag Sensor
    G11529605Courtesy of MAZDA MOTORS CORP.
  2. Press the area (3) indicated by the arrow and disconnect the connector (4).
