Passenger-side Air Bag Module

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  2. Remove the cap.

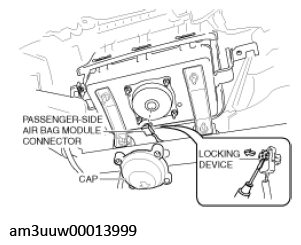

    Fig 1: Removing Passenger-Side Air Bag Module Cap
    G11529478Courtesy of MAZDA MOTORS CORP.
  3. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
  4. Disconnect the passenger-side air bag module connector.
  5. Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

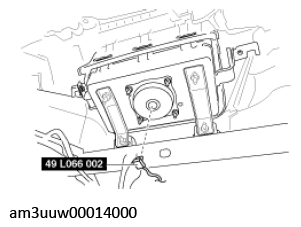

    Fig 2: Connecting SST (Adapter Harness) To Passenger-Side Air Bag Module
    G11529479Courtesy of MAZDA MOTORS CORP.
  6. Connect the SST (Deployment tool) to the SST (Adapter harness).
    Fig 3: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G11428231Courtesy of MAZDA MOTORS CORP.
  7. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST (Deployment tool) is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
  10. Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.
    Fig 4: Pressing Activation Switch On SST
    G11428232Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  11. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
