Hatchback (5HB): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The rear center seat belt is building into the rear seat back.
  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolt.

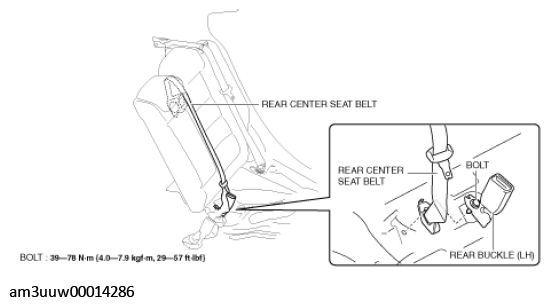

    Fig 1: Removing Rear Seat Back Frame
    G11539418Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .)
  4. Remove the rear center seat belt from the rear seat back frame.

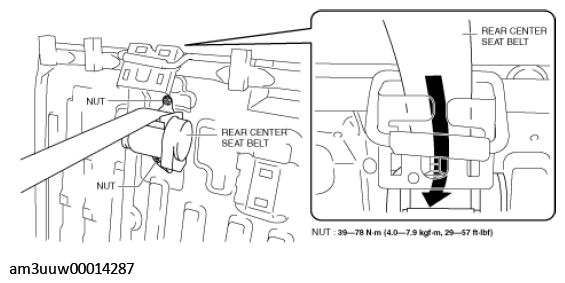

    Fig 2: Removing Rear Center Seat Belt
    G11539419Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal. (See REAR CENTER SEAT BELT INSTALLATION NOTE .)
