Parking Brake Lever Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION .)

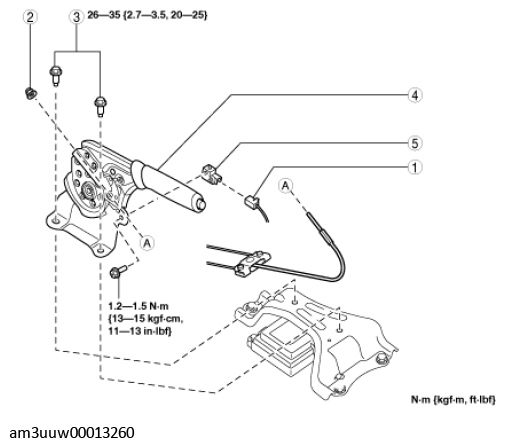

COMPONENT DESCRIPTION
| 1 | Parking brake switch connector |
| 2 | Adjusting nut |
| 3 | Bolt |
| 4 | Parking brake lever |
| 5 | Parking brake switch |
