DTC B1197-11; B1197-13; B1197-87; B1197-96: Passenger-Side Side Air Bag Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

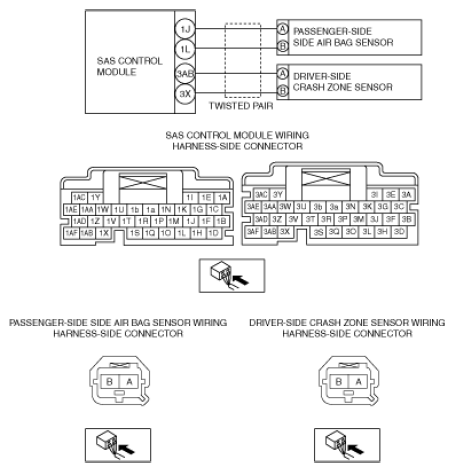

DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- B1197:11: Passenger-side side air bag sensor circuit short to body ground
- B1197:13: Passenger-side side air bag sensor circuit open circuit or short to power supply
- B1197:87: Signal reception error from passenger-side side air bag sensor
- B1197:96: Passenger-side side air bag sensor internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Passenger-side side air bag sensor connector malfunction
- Open circuit in the wiring harness between the following terminals:
- SAS control module terminal 1J-passenger-side side air bag sensor terminal A
- SAS control module terminal 1L-passenger-side side air bag sensor terminal B
- Short circuit to body ground in the wiring harness between the following terminals:
- SAS control module terminal 1J-passenger-side side air bag sensor terminal A
- SAS control module terminal 1L-passenger-side side air bag sensor terminal B
- SAS control module terminal 3AB-driver-side crash zone sensor terminal A
- SAS control module terminal 3X-driver-side crash zone sensor terminal B
- Short circuit to power supply in the wiring harness between the following terminals:
- SAS control module terminal 1J-passenger-side side air bag sensor terminal A
- SAS control module terminal 1L-passenger-side side air bag sensor terminal B
- SAS control module terminal 3AB-driver-side crash zone sensor terminal A
- SAS control module terminal 3X-driver-side crash zone sensor terminal B
- Passenger-side side air bag sensor malfunction
- SAS control module malfunction
|
|
|
