DTC B0094-11; B0094-13; B0094-87; B0094-96; Driver-Side Crash Zone Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
- B0094:11:Driver-side crash zone sensor circuit short to body ground
- B0094:13:Driver-side crash zone sensor circuit open circuit or short to power supply
- B0094:87:Signal reception error from driver-side crash zone sensor
- B0094:96:Driver-side crash zone sensor internal malfunction
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Wiring harness between the driver-side crash zone sensor and SAS control module has a malfunction
- Driver-side crash zone sensor has a malfunction
|
| Fail-safe |
Not applicable |
| Possible cause |
- Driver-side crash zone sensor connector malfunction

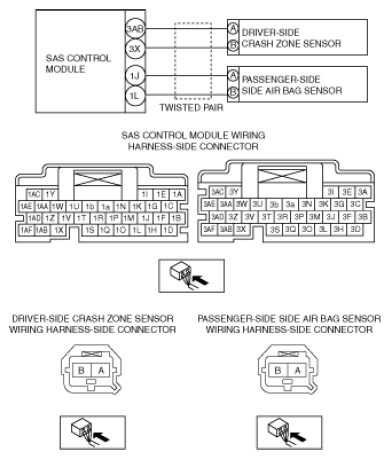

- Open circuit in the wiring harness between the following terminals:
- SAS control module terminal 3AB-driver-side crash zone sensor terminal A
- SAS control module terminal 3X-driver-side crash zone sensor terminal B
- Short circuit to body ground in the wiring harness between the following terminals:
- SAS control module terminal 3AB-driver-side crash zone sensor terminal A
- SAS control module terminal 3X-driver-side crash zone sensor terminal B
- SAS control module terminal 1J-passenger-side side air bag sensor terminal A
- SAS control module terminal 1L-passenger-side side air bag sensor terminal B
- Short circuit to power supply in the wiring harness between the following terminals:
- SAS control module terminal 3AB-driver-side crash zone sensor terminal A
- SAS control module terminal 3X-driver-side crash zone sensor terminal B
- SAS control module terminal 1J-passenger-side side air bag sensor terminal A
- SAS control module terminal 1L-passenger-side side air bag sensor terminal B
- Driver-side crash zone sensor malfunction
- SAS control module malfunction
|
|
|
