DTC B0094-11;B0094-13; B0094-87; B0094-96; Crash Zone Sensor Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSTIC CONDITION & POSSIBLE CAUSES

System malfunction location	B0094:11:Crash zone sensor circuit short to body ground B0094:13:Crash zone sensor circuit open circuit or short to power supply B0094:87:Signal reception error from crash zone sensor B0094:96:Crash zone sensor internal malfunction
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Wiring harness between the crash zone sensor and SAS control module has a malfunction Crash zone sensor has a malfunction
Fail-safe	Not applicable

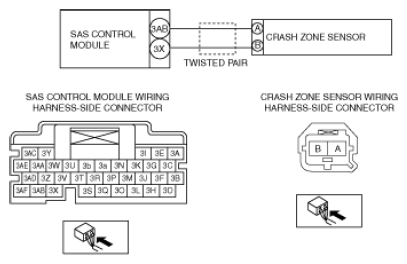

Possible cause	Crash zone sensor connector malfunction Open circuit in the wiring harness between the following terminals: SAS control module terminal 3AB-crash zone sensor terminal A SAS control module terminal 3X-crash zone sensor terminal B Short circuit to body ground in the wiring harness between the following terminals: SAS control module terminal 3AB-crash zone sensor terminal A SAS control module terminal 3X-crash zone sensor terminal B Short circuit to power supply in the wiring harness between the following terminals: SAS control module terminal 3AB-crash zone sensor terminal A SAS control module terminal 3X-crash zone sensor terminal B Crash zone sensor malfunction SAS control module malfunction
