Section 107 (On-Board Diagnostic - Electric Parking Brake)
>>
On-Board Diagnostic Wiring Diagram Electric Parking Brake
On-Board Diagnostic Wiring Diagram Electric Parking Brake
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

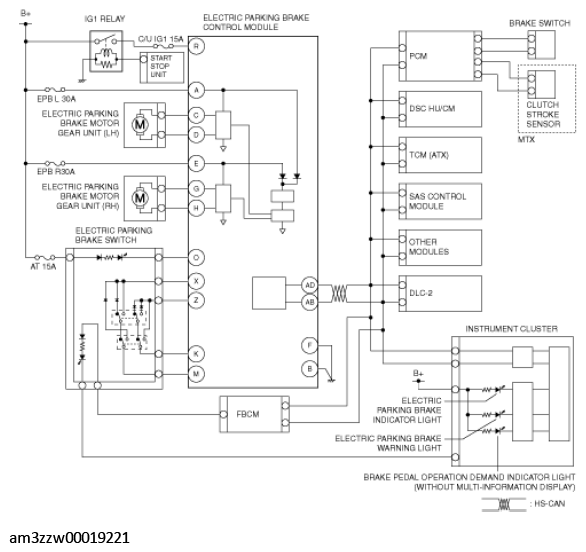

Fig 1: On-Board Diagnostic Wiring Diagram (Electric Parking Brake)
Courtesy of MAZDA MOTORS CORP.
