DTC C2006-07; Mechanical Problem Of Electric Parking Brake Motor Gear Unit (LH): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Mechanical problem of electric parking brake motor gear unit (LH) |
| Detection condition |
- Electric parking brake control module detects a mechanical problem of the electric parking brake motor gear unit (LH).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (LH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

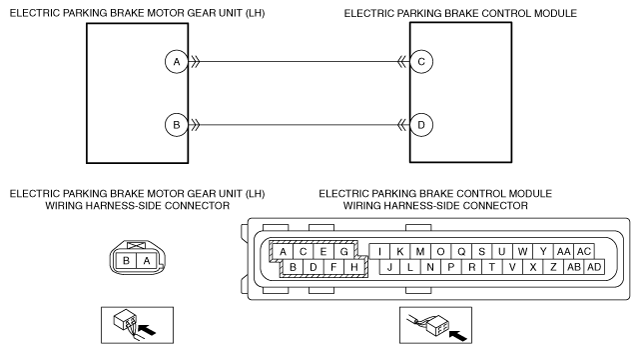

- Open circuit in wiring harness between the following terminals:
- Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal C
- Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal D
- Electric parking brake motor gear unit (LH) malfunction
- Electric parking brake control module malfunction
|
|
|
