DTC C2005-07; Mechanical Problem Of Electric Parking Brake Motor Gear Unit (RH): Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Mechanical problem of electric parking brake motor gear unit (RH) |
| Detection condition |
- Electric parking brake control module detects a mechanical problem of the electric parking brake motor gear unit (RH).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (RH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

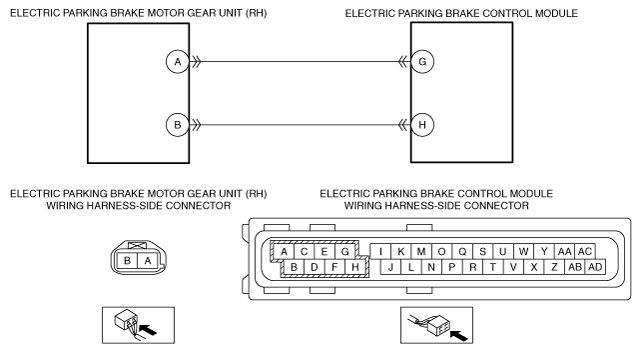

- Open circuit in wiring harness between the following terminals:
- Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal G
- Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal H
- Electric parking brake motor gear unit (RH) malfunction
- Electric parking brake control module malfunction
|
|
|
