DTC C2005-01; Electric Parking Brake Motor Gear Unit (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Electric parking brake motor gear unit (RH) circuit malfunction |
| Detection condition |
- Electric parking brake control module detects an electric parking motor gear unit (RH) circuit malfunction.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (RH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

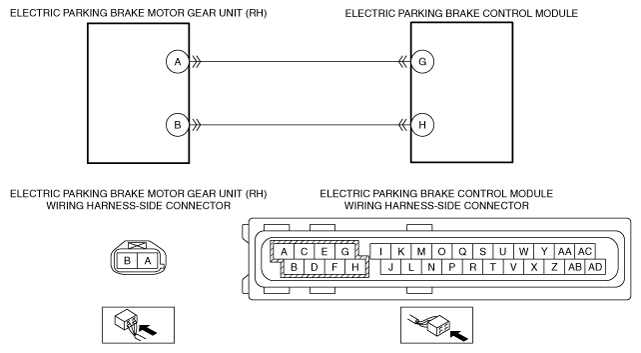

- Short to ground in wiring harness between the following terminals:
- Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal G
- Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal H
- Short to power supply in wiring harness between the following terminals:
- Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal G
- Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal H
- Short circuit between electric parking brake motor gear unit (RH) circuits
- Electric parking brake motor gear unit (RH) malfunction
- Electric parking brake control module malfunction
|
|
|
