DTC C1128-0A; Electric Parking Brake Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Electric parking brake switch circuit malfunction |
| Detection condition |
- Electric parking brake control module detects an electric parking brake switch circuit malfunction.
|
| Fail-safe |
|
| Possible cause |
- Electric parking brake switch connector or terminal malfunction
- Electric parking brake switch malfunction
- Electric parking brake switch power supply circuit malfunction

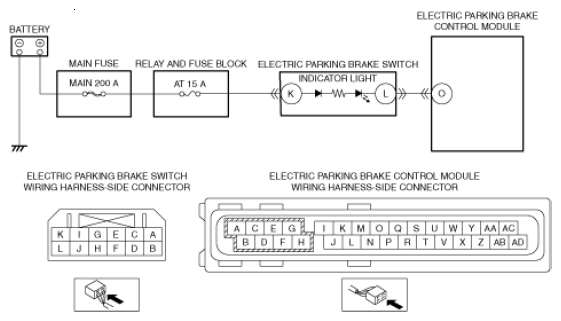

- Short to ground in wiring harness between battery positive terminal and electric parking brake switch terminal K
- AT 15 A fuse malfunction
- MAIN 200 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and electric parking brake switch terminal K
- Electric parking brake control module connector or terminal malfunction
- Short to power supply in wiring harness between electric parking brake switch terminal L and electric parking brake control module terminal O
- Electric parking brake control module malfunction
|
|
|
