Vehicle Interior

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. While pressing the trunk lid opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the trunk lid opener switch tab from the driver-side lower panel.

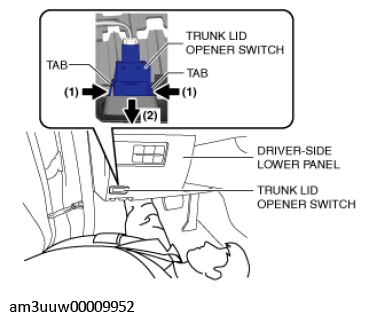

    Fig 1: Detaching Trunk Lid Opener Switch Tab From Driver-Side Lower Panel
    G11467847Courtesy of MAZDA MOTORS CORP.
  3. Remove the trunk lid opener switch from the driver-side lower panel.
  4. Disconnect the connector from the trunk lid opener switch.

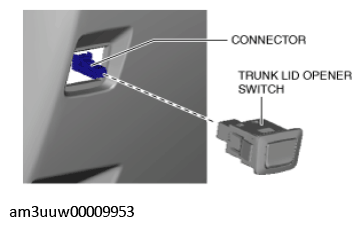

    Fig 2: Disconnecting Connector From Trunk Lid Opener Switch
    G11467848Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
