Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Pull back the trunk side trim (RH) to a position which allows for the removal of the theft-deterrent horn. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

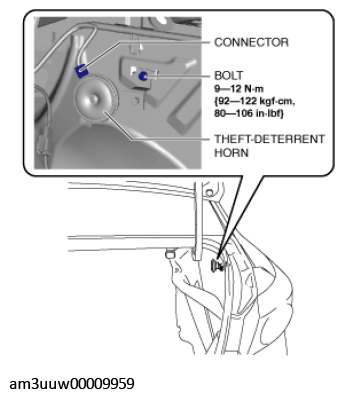

    Fig 1: Locating Theft-Deterrent Horn Connector
    G11467833Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the theft-deterrent horn.
  6. Install in the reverse order of removal.
