Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the service hole cover.
    Fig 1: Service Hole Cover Location
    G11467834Courtesy of MAZDA MOTORS CORP.
  3. Remove the jack.
  4. Disconnect the connector.

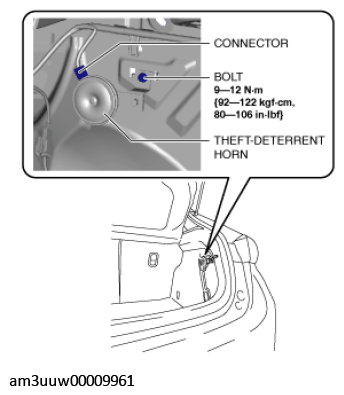

    Fig 2: Theft-Deterrent Horn Connector Location
    G11467835Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the theft-deterrent horn.
  7. Install in the reverse order of removal.
