Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the theft-deterrent horn. (See THEFT-DETERRENT HORN REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage to horn terminal A, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.

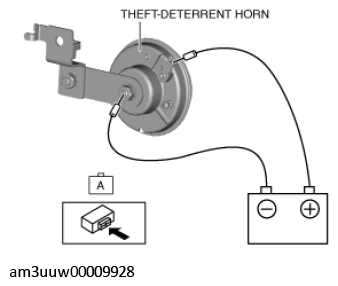

    Fig 1: Applying Battery Positive Voltage To Horn Terminal A And Connect Horn Retaining Bolt To Ground
    G11467831Courtesy of MAZDA MOTORS CORP.
    • If the horn does not sound, replace the horn.
