Rear Outer Handle Bracket Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

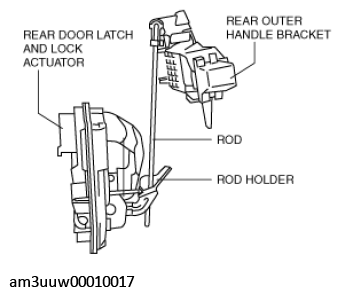

Fig 1: Inserting Rod Into Rod Holder Hole

Courtesy of MAZDA MOTORS CORP.
