Fuel-filler Lid Opener Lever

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

While pulling the fuel-filler lid opener lever, insert a remover tool into the position shown in the figure.

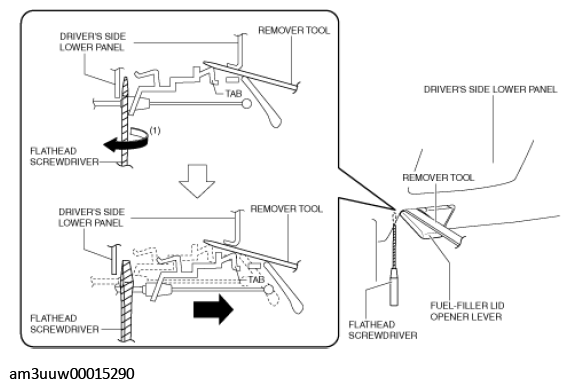

Fig 1: Pulling Fuel-Filler Lid Opener Lever
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the fuel-filler lid opener lever from the driver's side lower panel.
CAUTION:
- Remove the fuel-filler lid opener lever while being careful not to damage the fuel-filler lid opener cable with the flathead screwdriver.
Pull the fuel-filler lid opener lever to remove it from the lower panel.

Fig 2: Pulling Fuel-Filler Lid Opener Lever
Courtesy of MAZDA MOTORS CORP.
Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener lever.
Install in the reverse order of removal.
