On-Board Diagnostic Wiring Diagram Rear Body Control Module (RBCM)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

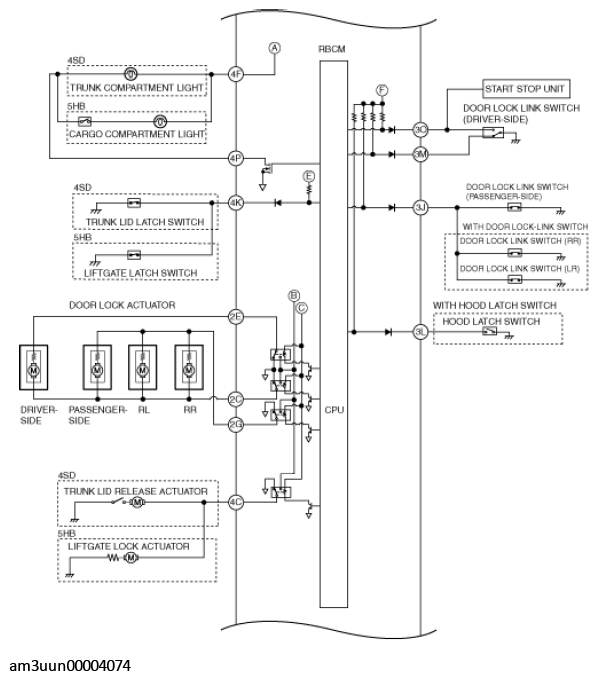

Fig 1: Rear Body Control Module - On-Board Diagnostic Wiring Diagram (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

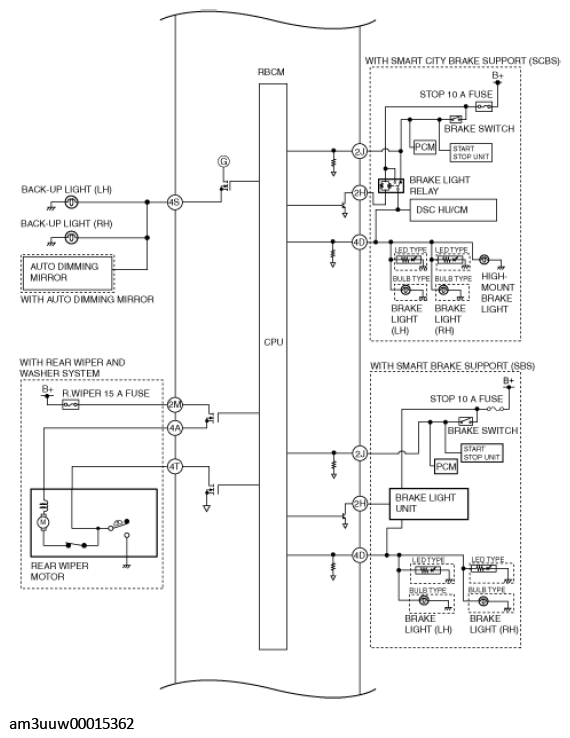

Fig 2: Rear Body Control Module - On-Board Diagnostic Wiring Diagram (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

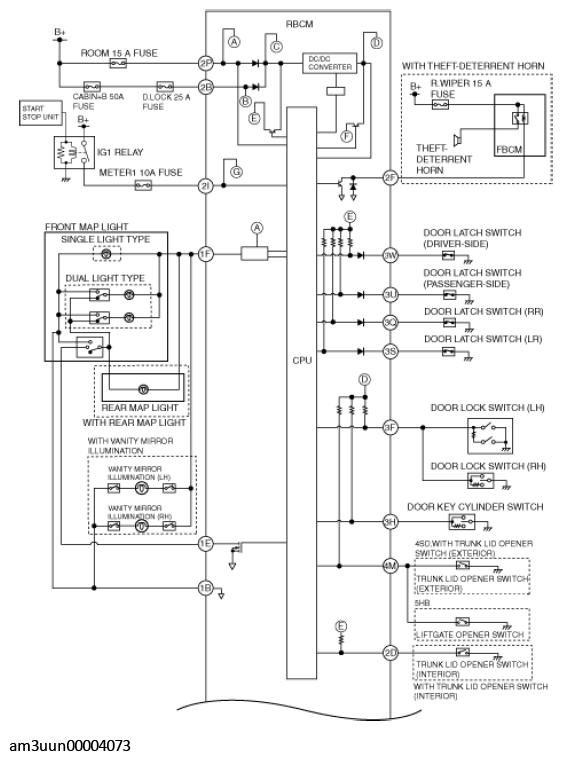

Fig 3: Rear Body Control Module - On-Board Diagnostic Wiring Diagram (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

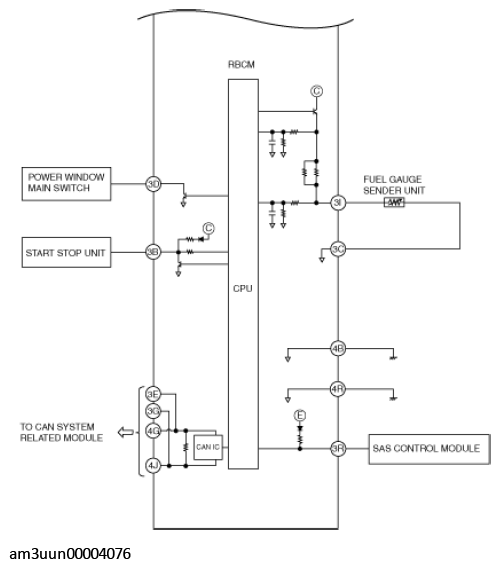

Fig 4: Rear Body Control Module - On-Board Diagnostic Wiring Diagram (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
