DTC B126A-11; Front Door Lock-Link Switch (LH) Lock Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Front door lock-link switch (LH) lock circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects a short to ground in the front door lock-link switch (LH) lock circuit with the front door lock-link switch (LH) unlocked.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Front door lock-link switch (LH) malfunction
- Start stop unit connector or terminal malfunction
- Rear body control module (RBCM) connector or terminal malfunction

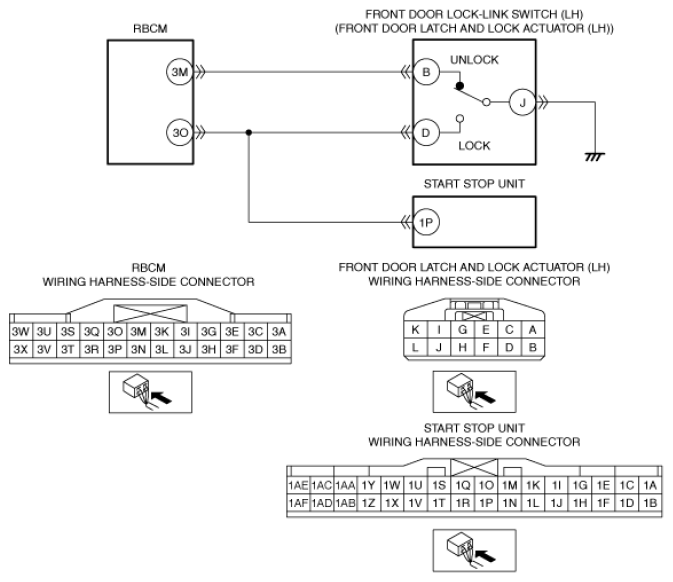

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 1P-Front door latch and lock actuator (LH) terminal D
- Rear body control module (RBCM) terminal 3O-Front door latch and lock actuator (LH) terminal D
- Start stop unit malfunction
- Rear body control module (RBCM) malfunction
|
|
|
