DTC B1219-11; Trunk Lid Opener Switch (Interior) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Trunk lid opener switch (interior) circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects a short to ground in trunk lid opener switch (interior) circuit
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Trunk lid opener switch (interior) connector or terminal malfunction
- Trunk lid opener switch (interior) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

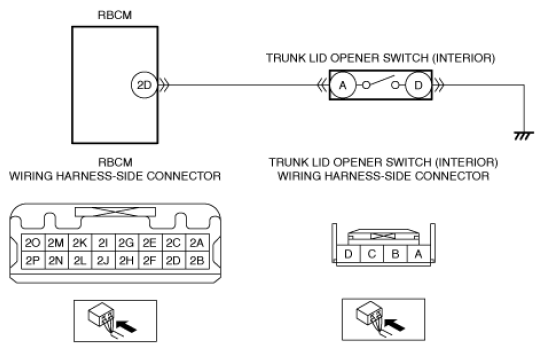

- Short to ground in wiring harness between rear body control module (RBCM) terminal 2D and trunk lid opener switch (interior) terminal A
- Rear body control module (RBCM) malfunction
|
|
|
