DTC B11E9-11; Rear Door Latch Switch (LH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Rear door latch switch (LH) circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects a short to ground in the rear door latch switch (LH) circuit with the rear door (LH) closed (rear door latch switch (LH) off).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Rear door latch and lock actuator (LH) connector or terminal malfunction
- Rear door latch switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

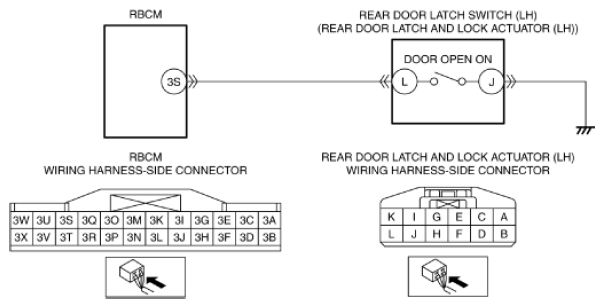

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3S and rear door latch and lock actuator (LH) terminal L
- Rear body control module (RBCM) malfunction
|
|
|
