DTC B11DA-16; Front Door Key Cylinder Switch (LH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Front door key cylinder switch (LH) circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects the front door key cylinder switch (LH) circuit voltage of 4 V or less with the front door key cylinder switch (LH) off.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Front door key cylinder switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

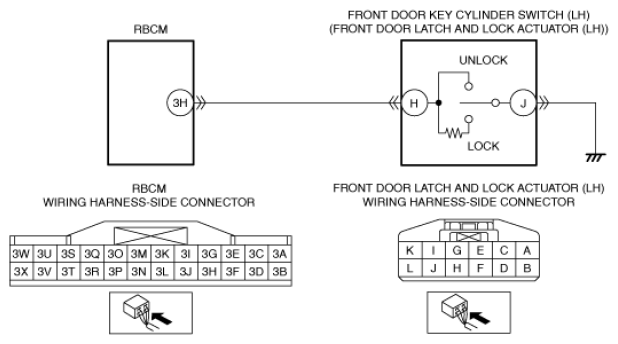

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3H and front door latch and lock actuator (LH) terminal H.
- Rear body control module (RBCM) malfunction
|
|
|
