DTC B1178-11; Trunk Lid Latch Switch Circuit Malfunction: 5HB
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Liftgate latch switch circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects short to ground in liftgate latch switch circuit with the liftgate closed (liftgate latch switch off).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Liftgate latch and lock actuator connector or terminal malfunction
- Liftgate latch switch malfunction
- Rear body control module (RBCM) connector or terminal malfunction

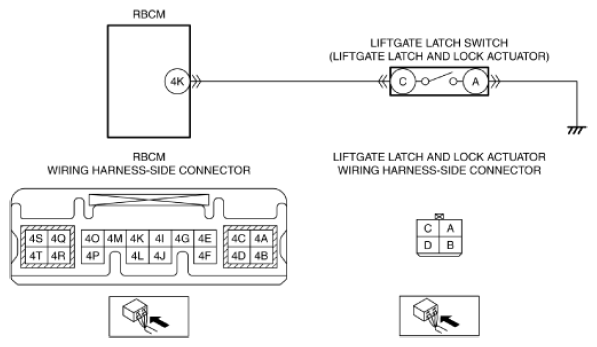

- Short to ground in wiring harness between rear body control module (RBCM) terminal 4K and liftgate latch and lock actuator terminal C
- Rear body control module (RBCM) malfunction
|
|
|
