DTC B1178-11; Trunk Lid Latch Switch Circuit Malfunction: 4SD
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Trunk lid latch switch circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects short to ground in trunk lid latch switch circuit with the trunk closed (trunk lid latch switch off).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Trunk lid latch and release actuator connector or terminal malfunction
- Trunk lid latch switch malfunction
- Rear body control module (RBCM) connector or terminal malfunction

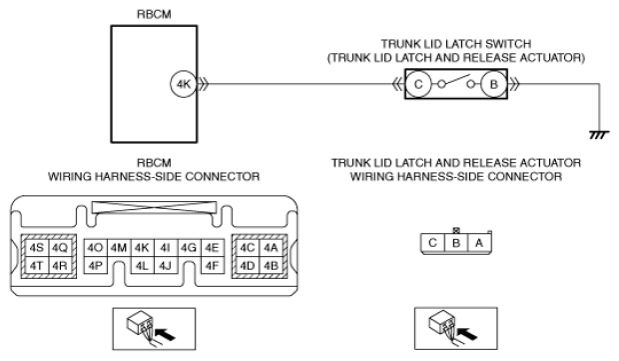

- Short to ground in wiring harness between rear body control module (RBCM) terminal 4K and trunk lid latch and release actuator terminal C
- Rear body control module (RBCM) malfunction
|
|
|
