Without Theft-Deterrent System
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Front door lock-link switch (RH) unlock circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects an open circuit in the front door lock-link switch (RH) unlock circuit with the front door lock-link switch (RH) unlocked.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front door latch and lock actuator (RH) connector or terminal malfunction
- Open circuit in wiring harness between front door latch and lock actuator (RH) terminal D and body ground.
- Front door lock-link switch (RH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

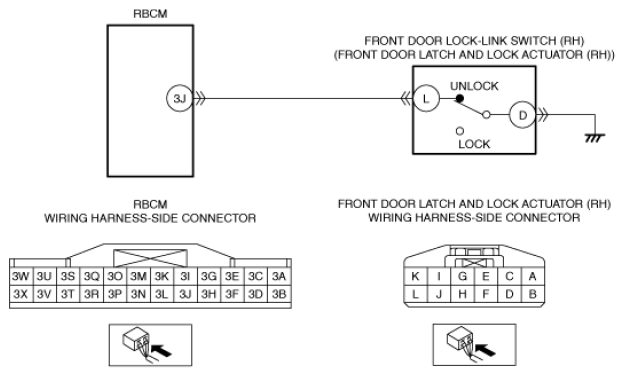

- Open circuit in wiring harness between rear body control module (RBCM) terminal 3J and front door latch and lock actuator (RH) terminal L
- Rear body control module (RBCM) malfunction
|
|
|
