DTC B1172-11; Front Door Lock-Link Switch (LH) Unlock Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Front door lock-link switch (LH) unlock circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects a short to ground in the front door lock-link switch (LH) unlock circuit with the front door lock-link switch (LH) locked.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Front door lock-link switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

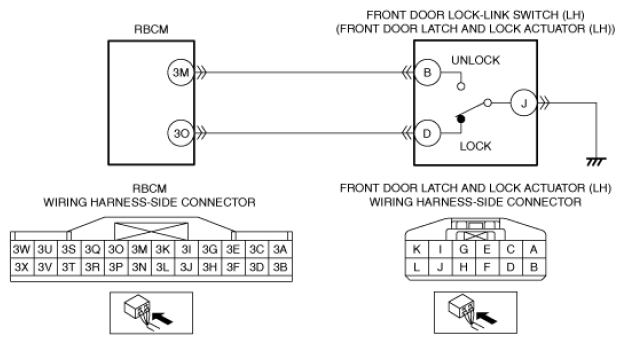

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3M and front door latch and lock actuator (LH) terminal B
- Rear body control module (RBCM) malfunction
|
|
|
