DTC B113E-11; Trunk Lid Or Liftgate Opener Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSE
| Description |
4SD
- Trunk lid opener switch (exterior) circuit malfunction 5HB
- Liftgate opener switch circuit malfunction
|
| Detection condition |
- Rear body control module (RBCM) detects a short to ground in the trunk lid opener switch (exterior) (4SD)/liftgate opener switch (5HB) circuit
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Trunk lid opener switch (exterior) (4SD)/liftgate opener switch (5HB) connector or terminal malfunction
- Trunk lid opener switch (exterior) (4SD)/liftgate opener switch (5HB) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

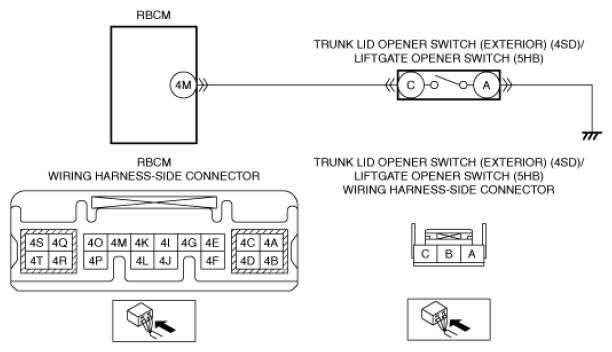

- Short to ground in wiring harness between rear body control module (RBCM) terminal 4M and trunk lid opener switch (exterior) (4SD)/liftgate opener switch (5HB) terminal C
- Rear body control module (RBCM) malfunction
|
|
|
