Required procedure after negative battery cable disconnection/connection
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
| System name | Conditions after disconnecting the negative battery cable | Required procedure Reference | Reference | |
| Before disconnecting negative battery cable | After connecting negative battery cable | |||
| Tire pressure monitoring system (TPMS) | The tire pressure monitoring system detection accuracy decreases. | - | Perform the tire pressure monitoring system initialization. | (See TIRE PRESSURE MONITORING SYSTEM INITIALIZATION PROCEDURE .) |
| Power window system | Reset to initial setting and auto-function is disabled. | - | Perform the power window system initial setting. | (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| Sunroof system | Reset to initial setting and function is disabled. | - | Perform the sunroof system initial setting. | (See SUNROOF SYSTEM INITIALIZATION PROCEDURE .) |
| Position memory system | Position memory system memory is reset. | Verify the setting content. | Set the verified content before disconnecting negative battery cable. | - |
| Clock and audio | Clock display and audio system memory are reset. | Verify the setting content. | Set the verified content before disconnecting negative battery cable. | - |

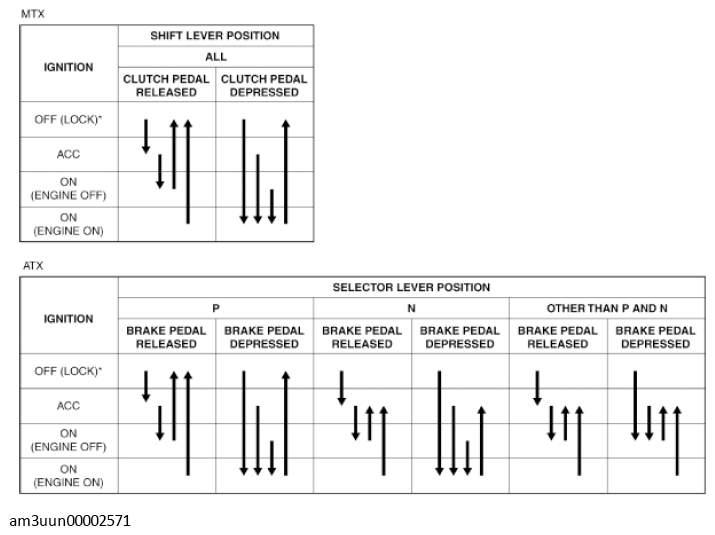

Switch The Power Supply Using The Push Button Start And Start The Engine
- The power supply switches according to the vehicle conditions such as the shift lever (MTX)/selector lever (ATX) position and the pedal depression/release.
*: To switch the ignition to ACC or off from ON (engine on), a vehicle speed of 5 km/h {3 mph} or less is required.
