Jacking Positions

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.
CAUTION:
  • Use safety stands to support the vehicle after it has been lifted.
NOTE:
  • To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.

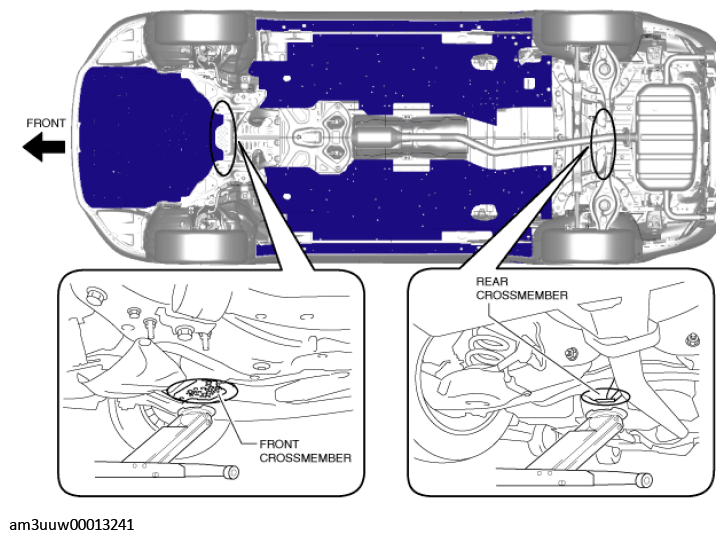

Fig 1: Locating Jacking Positions
G11550525Courtesy of MAZDA MOTORS CORP.
