Vehicle harness-side connector

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

The viewing orientation for vehicle wiring harness-side connectors is from the wiring harness side.

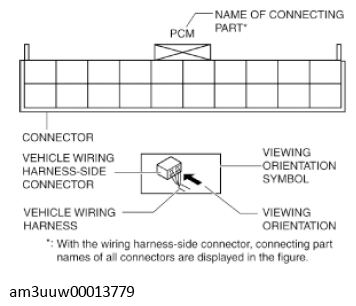

Fig 1: Checking Orientation Of Vehicle Harness-Side Connector

Courtesy of MAZDA MOTORS CORP.

Other

When it is necessary to show the terminal side of the vehicle wiring harness-side connectors, such as the following connectors, the viewing orientation is from the terminal side.

Fig 2: Checking Orientation Of Connector
Courtesy of MAZDA MOTORS CORP.
- Main fuse block and the main fuse block relays
- Data link connector
- Check connector
- Relay box
