Resistance Inspection
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the TPMS set switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

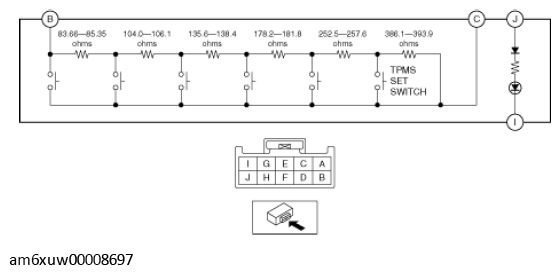

- Verify that the resistance between the TPMS set switch terminals B and C is as indicated in the table.
- If not as indicated in the table, replace the cluster switch.
TERMINAL RESISTANCE SPECIFICATION
| Terminal | Test condition | Resistance (ohms) |
|---|---|---|
| B-C | TPMS set switch pressed | 753.96-769.25 |
| All switches released | 1140.06-1163.15 |
