Warning/Indicator Light Illumination Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the M-MDS to the DLC-2.
- After vehicle identification, select the following from the M-MDS initialization screen.
- "DataLogger"
- "Modules"
- "IC"
- Using "WL+IL", verify that the warning/indicator lights in the following
chart are illuminated.
- If any of the warning/indicator lights are not displayed, replace the instrument cluster.

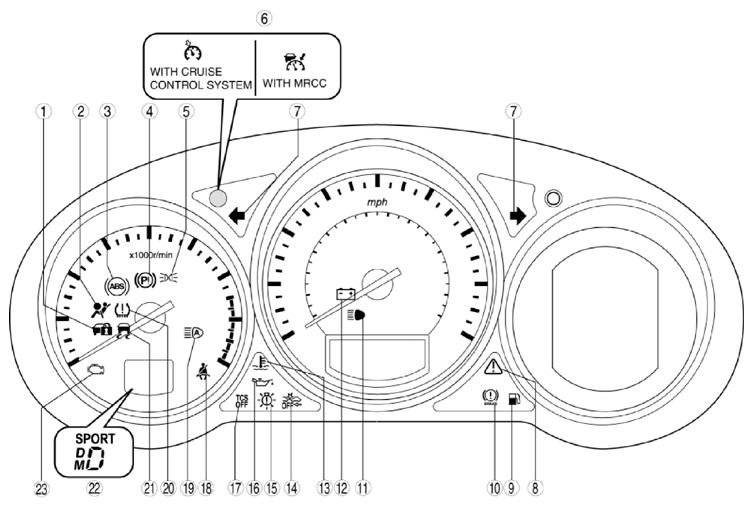

Type A
x: Applicable-: Not applicable
| No. | Warning/Indicator lights | Name | Multi-information display | Center display | Comment |
|---|---|---|---|---|---|
| 1 | Security indicator light | - | - | - | |
| 2 | Air bag/front seat belt pre-tensioner system warning light | - | x | - | |
| 3 | ABS warning light | - | x | - | |
| 4 | Electric parking brake warning light | x | x | - | |
| 5 | Lights-on indicator light | x | - | - | |
| 6 | Cruise main indicator light (amber)/cruise set indicator light (green) | - | - | With cruise control system | |
| Mazda radar cruise control (MRCC) warning light (amber)/indicator light (green) | x | - | With MRCC | ||
| 7 | Turn signal/hazard warning indicator lights | - | - | - | |
| 8 | Master warning light | x | x | - | |
| 9 | Low fuel warning light | - | x | - | |
| 10 | Brake system warning light | x | x | - | |
| 11 | Headlight high-beam indicator light | - | - | - | |
| 12 | Charging system warning light | x | x | - | |
| 13 | Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) | x | x | - | |
| 14 | Smart city brake support (SCBS) OFF indicator light | - | - | With SCBS system | |
| 15 | LED headlight warning light | - | x | With front combination light (LED type) | |
| 16 | Engine oil warning light | x | x | - | |
| 17 | TCS OFF indicator light | - | - | - | |
| 18 | Seat belt warning light | - | - | - | |
| 19 | High beam control (HBC) system warning light (amber)/indicator light (green) | x | x | With HBC System | |
| 20 | Tire pressure monitoring system warning light | x | x | With TPMS | |
| 21 | TCS/DSC indicator light | - | x | - | |
| 22 | Select mode indication | - | - | ATX | |
| Shift position indicator/gear position indicator | - | - | - | ||
| Gear shift indicator | - | - | MTX | ||
| 23 | Check engine light | - | x | - |

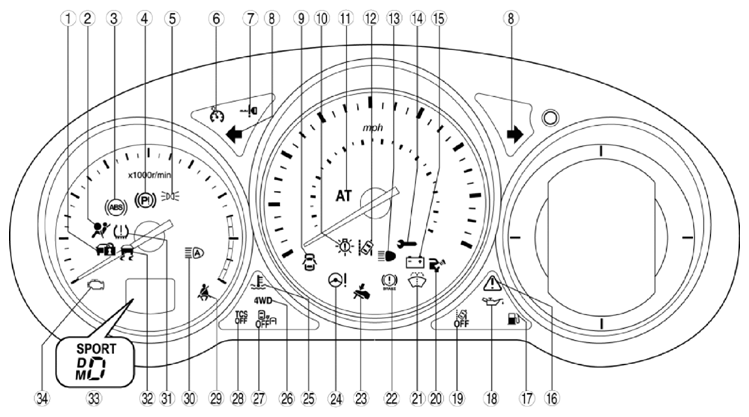

Type B
x: Applicable-: Not applicable
| No. | Warning/Indicator lights | Name | Center display | Comment |
|---|---|---|---|---|
| 1 | Security indicator light | - | - | |
| 2 | Air bag/front seat belt pre-tensioner system warning light | x | - | |
| 3 | ABS warning light | x | - | |
| 4 | Electric parking brake warning light | x | - | |
| 5 | Lights-on indicator light | - | - | |
| 6 | Cruise main indicator light (amber)/cruise set indicator light (green) | - | With cruise control system | |
| 7 | KEY warning light (red)/indicator light (green) | x | - | |
| 8 | Turn signal/hazard warning indicator lights | - | - | |
| 9 | Door-ajar warning light | - | - | |
| 10 | LED headlight warning light | x | With front combination light (LED type) | |
| 11 | Automatic transaxle warning light | x | ATX | |
| 12 | Lane departure warning system (LDWS) warning light (amber)/indicator light (green) | x | With LDWS | |
| 13 | Headlight high-beam indicator light | - | - | |
| 14 | Wrench indicator light | x | - | |
| 15 | Charging system warning light | x | - | |
| 16 | Master warning light | x | - | |
| 17 | Low fuel warning light | x | - | |
| 18 | Engine oil warning light | x | - | |
| 19 | LDWS OFF indicator light | - | With LDWS | |
| 20 | Check fuel cap warning light | x | - | |
| 21 | Low washer fluid level warning light | x | With washer fluid-level sensor | |
| 22 | Brake system warning light | x | - | |
| 23 | Brake pedal operation demand indicator light | - | - | |
| 24 | Power steering malfunction indicator light | x | - | |
| 25 | Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red) | x | - | |
| 26 | 4WD warning light | x | - | |
| 27 | Blind spot monitoring (BSM) off indicator light | - | - | |
| 28 | TCS OFF indicator light | - | - | |
| 29 | Seat belt warning light | - | - | |
| 30 | High beam control (HBC) system warning light (amber)/indicator light (green) | x | With HBC system | |
| 31 | Tire pressure monitoring system warning light | x | With TPMS | |
| 32 | TCS/DSC indicator light | x | - | |
| 33 | Select mode indication | - | ATX | |
| Shift position indicator/gear position indicator | - | - | ||
| Gear shift indicator | - | MTX | ||
| 34 | Check engine light | x | - |
