Front Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake calliper component from the steering knuckle and suspend it out of the way using a cable.
  2. Remove the disc plate.
  3. Remove the wheel hub bolt using the SST as shown in the figure.

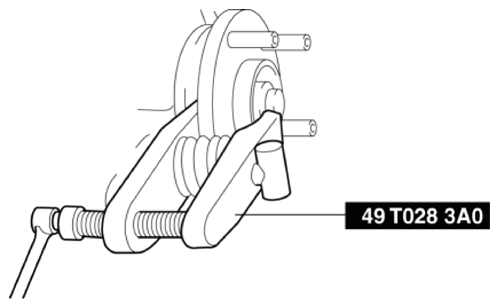

    Fig 1: Removing Wheel Hub Bolt
    G10936574Courtesy of MAZDA MOTORS CORP.
  4. Place a new wheel hub bolt in the wheel hub.
  5. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

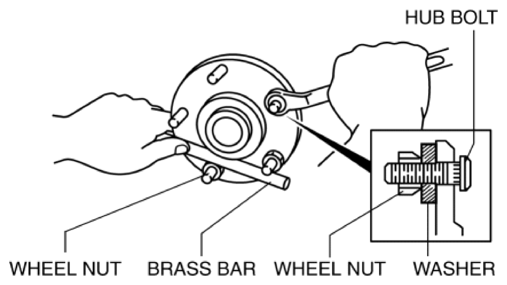

    Fig 2: Installing Wheel Hub Bolt
    G10936575Courtesy of MAZDA MOTORS CORP.
