| 7 |
ENGINE OIL WARNING LIGHT ILLUMINATED/MESSAGE RELATED TO ENGINE HYDRAULIC PRESSURE MALFUNCTION INDICATED IN DISPLAY |
| DESCRIPTION |
- Engine oil warning light illuminated.
- Message related to engine hydraulic pressure indicated in display.
|
| POSSIBLE CAUSE |
- Improper engine oil level
- Engine oil leakage
- Oil pressure switch connector or terminals malfunction
- PCM connector or terminals malfunction

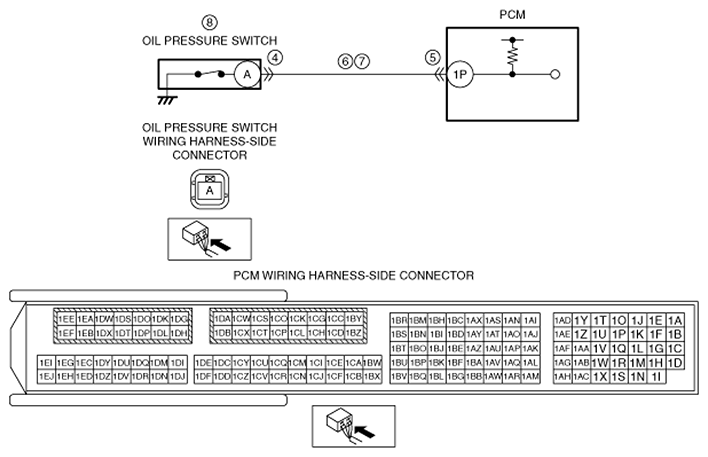

- Short to ground in wiring harness between oil pressure switch terminal A and PCM terminal 1P
- Open circuit in wiring harness between oil pressure switch terminal A and PCM terminal 1P
- Oil pressure switch malfunction
- Oil pump malfunction
- Instrument cluster malfunction
- PCM malfunction
|
|
|
