No. 1 Blown Fuses

1

BLOWN FUSES

[TROUBLESHOOTING HINTS]

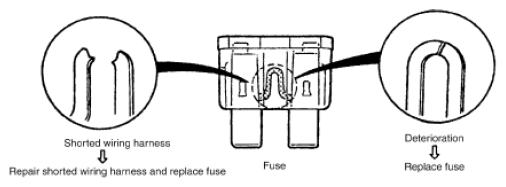

Inspect condition of fuse.

G11430182

Damaged fuse

Related wiring harness

MAIN

FAN GE fuse
ADD FAN GE fuse
FUEL PUMP fuse
IG2 fuse
ENG.+B fuse
ENG. MAIN fuse
INJECTOR fuse
EVVT fuse
IG1 relay

FAN GE

Cooling fan relay No. 2

ADD FAN GE

Cooling fan relay No. 3

ENGINE. IG1

Fuel pump relay
PCM

FUEL PUMP

Fuel pump relay

STR

Generator
Starter

IG2

ACC relay
Starter relay

ENG.+B

PCM
DLC-2

ENG. MAIN

Main relay

INJECTOR

Fuel injector relay

EVVT

Electric variable valve timing relay

ENGINE1

Electric variable valve timing relay
A/F sensor
HO2S
MAF sensor/IAT sensor No. 1
Intake CMP sensor
CV solenoid valve ⁽¹⁾

ENGINE2

Fuel injector relay
Purge solenoid valve
OCV
PCM
Engine oil solenoid valve
Exhaust CMP sensor
Ignition coil/ion sensor No. 1
Ignition coil/ion sensor No. 2
Ignition coil/ion sensor No. 3
Ignition coil/ion sensor No. 4

ENGINE3

Cooling fan relay No. 1
Cooling fan relay No. 2
Cooling fan relay No. 3

⁽¹⁾	U. S. A. and CANADA
