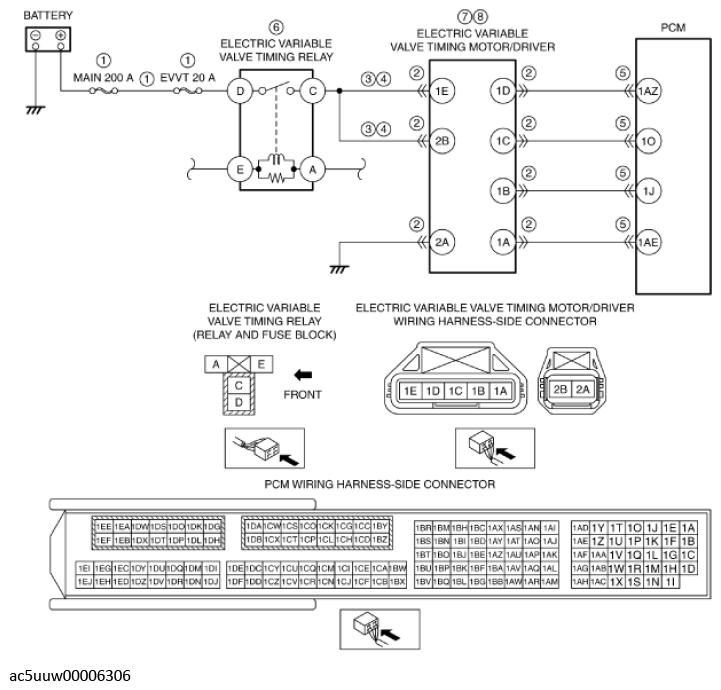

Home >> Mazda >> 2017 >> CX-5 Grand Select, FWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> On-Board Diagnostic - Engine Control System (1 Of 5) >> DTC P0011-00: P0012-00: Electric Variable Valve Timing Control System >> System Wiring Diagram
